Micro Electronics has finished project for the Turkish customer with a customized Micro D harness. The harness applied in the telemetry measurement system for oil/gas equipment. The main task for the harness was the corresponding with MIL-W-16878/MIL-DTL-681 specs. According to our solution the wire types can be expanded as soft (30*0.09) or hard (19*0.12) option for the best stacking variations during on the equipment assembly. The number of lines may vary from 9 to 100. The harness wires meet the environment's temp. -65..200 C. Such solutions available on the market are overpriced and the customer sought something cheaper. Our team found the manufacturer who fulfilled all technical requirements and made the Micro-D assemblies with gold-plated TwistPin contacts for reliable performance during the vibration & low DC current resistance 10 mOhm. According to the international market flow this harnesses solution has optimized manufacturing process and as a result more competitive cost compare to competitors branded parts.
Performance of Harness
- Contact Pitch - 0.050˝ (1.27 mm)
- TEMPERATURE RANGES - STANDARD -55°C / +150°C & HIGH TEMP +200°C
- Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts
- Plastic shell: 9, 15, 21,25,31,37, 51 contacts
- Contacts -Twist pin contacts, high density interconnection
- Jackscrew - High or low profile, hexagonal socket, or slotted head.

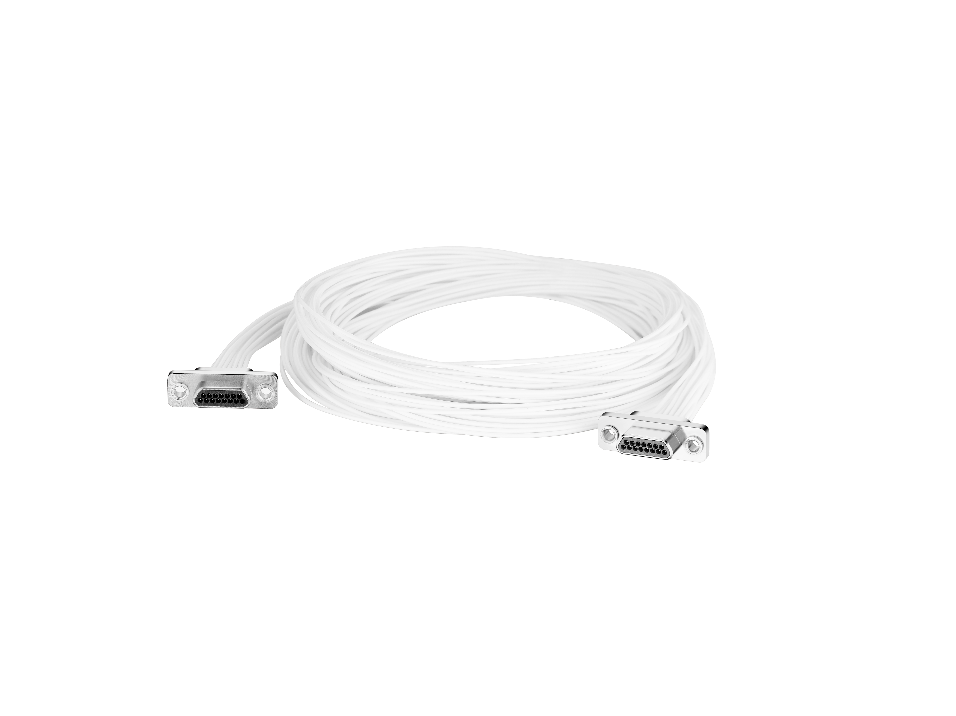

- Cable - AFR250 (PTFE) MIL-DTL-681
- Wire length up to 6 meters
Custom harness options

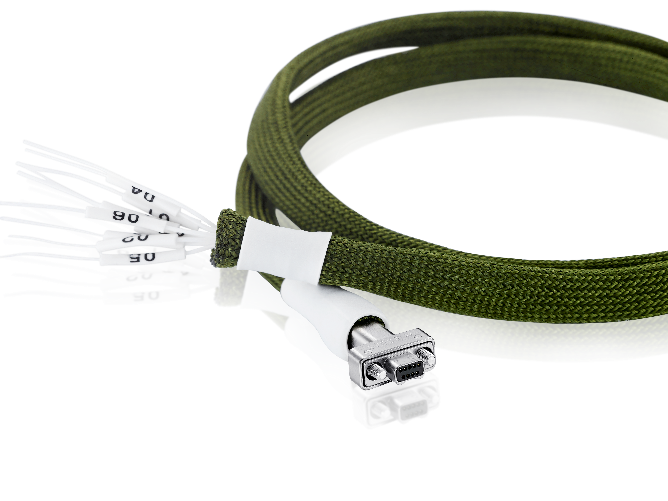

- Custom-made crimp style connectors - A standard connector modified to meet vibration requirements.
- LCP - Liquid Crystal Polymer filling allows to increase a waterproof of the assembly
- Pigtail crimp style connectors - Connector with insulated or uninsulated wires.
- Braid options – Polyamide Fibre Coat / EMI net or free
- Potting - Epoxy compound used as an encapsulant. Effective for sharp temperature fluctuations.
